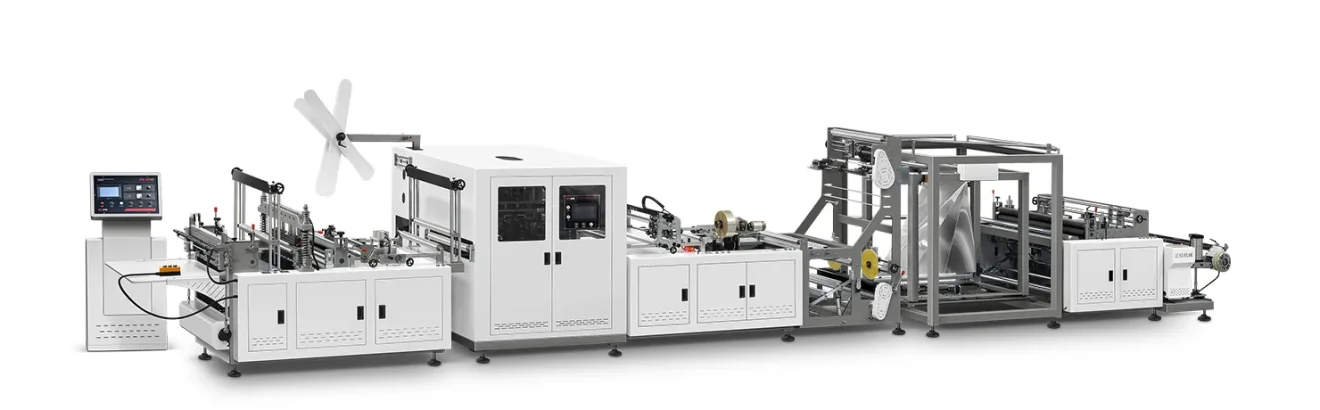

Non woven bag making machine uses non woven fabric as raw material to process all kinds of non woven bags with different specifications and shapes to meet the market demand of customers. The machine is integrated with mechanics and electricity and operated by touch screen. It is equipped with step-by-step length setting and photoelectric tracking, which is accurate and smooth. Automatic counting can be set to count the alarm, automatic punching and other industrial control devices, so that the production of the finished product sealing line firmly, cut line beautiful, is a high-quality environmental protection bag-making equipment you can rest assured that the use of.
Max width of unwinding 1300MM,max diameter of unwinding 1000MM. Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control,folding sealing by ultrasonic welding, custom made round embossing mould
Non woven fabric cross folding device, easy adjustment, which make the bog mouth neat and tidy even without moving the whole machine.
Feeding and computer length fixed by stepping motor, photocell eye tracking, bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic.
The function of box bag three-dimensional, triangle sealing by ultrasonic, PET film unwinding and rewinding and D-cut punching unit. gusset size of box bag from 80 MM to 160 MM,custom made gusset size up to 300 MM.
Automatic integration ultrasonic handle sealing device, adopts PLC motion control and touch screen man-machine interface, easy operation, auto stop when no material. Handle feeding and length fix by stepping motor, high stability, handle attaching speed up to 75 pcs/min.
The function of Bag side sealing , cutting, collection. adjustable photoelectric sensor for printing color mark tracking, triangle removing by punching unit and Durable cold cutter. Adopts two Taiwan brand ultrasonic welding system(horn 300 MM) , different specs of ultrasonic can be used to meet different non woven fabric GSM.
Integrate all the electricity elements, adopts split-type design and PLC motion control as well as touch screen man-machine interface, easy operation and maintaining.
A: Within one week after machine arrival your factory.
A: We will finish installation and training within 15 days.
A: You should charge for the cost of our engineer’s visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
A: All our machine have one year guarantee, starting from finished installation.
A: We also can do service for you, but you need pay salary for my technician 80USD/day.
A: We would express the free replacement parts during the warranty date.
A: Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
A: Of course, we will check and inform you as soon as possible.
A: Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
A: Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
Welcome to discuss your purchasing requirements with our customer service.
