Non woven Box Bag Making Machine with Online Handle Attaching
- Max width of unwinding 1300MM
- Max diameter of unwinding 1000MM.
- Auto feeding, Photocell eye tracking, Auto rectifying deviation
Quote Now
Download Catalog

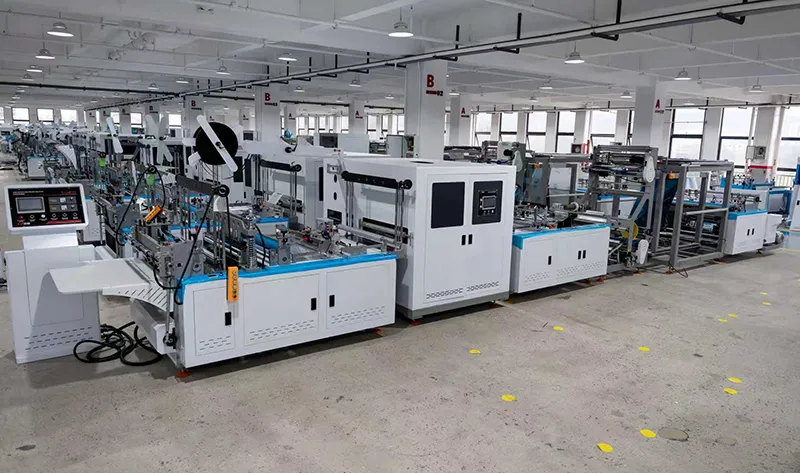

ZXL-E700 Non woven Box Bag Making Machine with Online Handle Attaching(5 in 1)

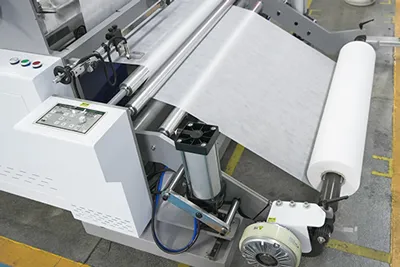

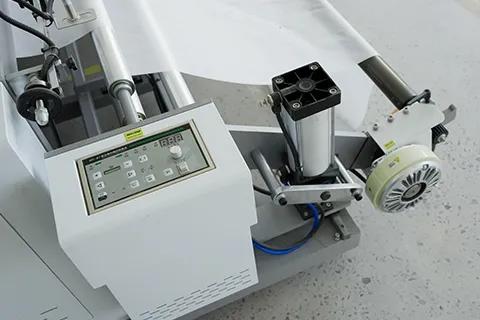

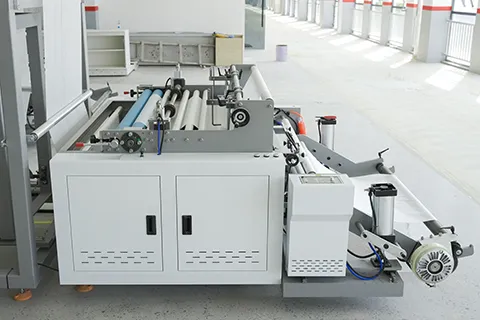

Part 1 Fabric roll Feeding part
Max width of unwinding 1300MM,max diameter of unwinding 1000MM. Auto feeding, Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control,folding sealing by ultrasonic welding, custom made round embossing mould

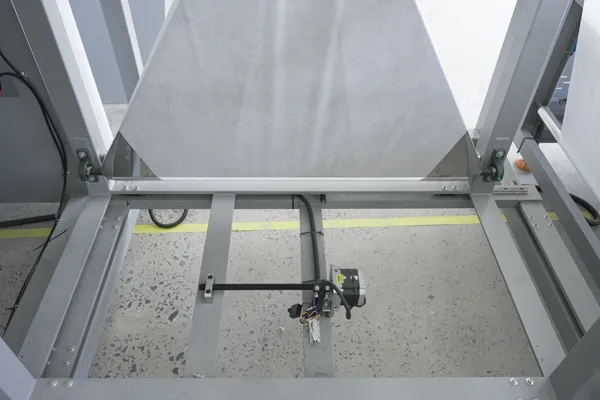

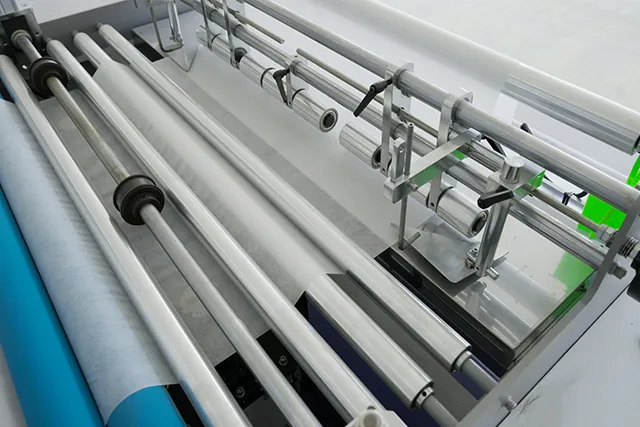

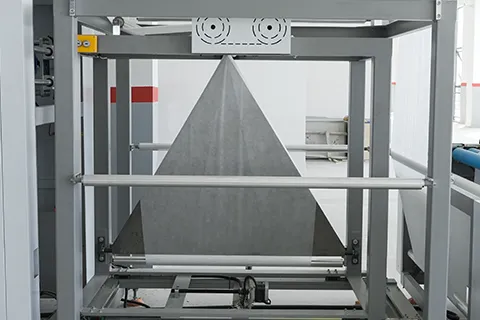

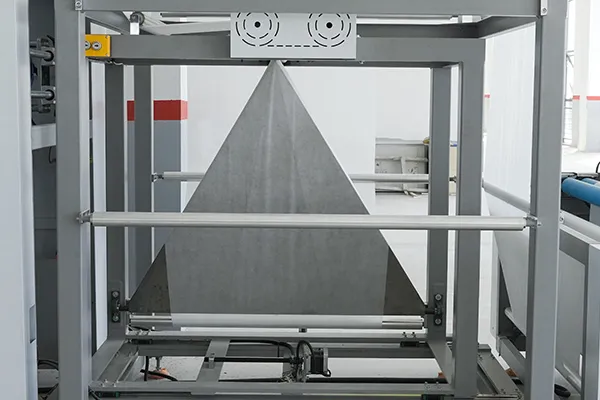

Part 2 Folding part
Non woven fabric cross folding device, easy adjustment, which make the bog mouth neat and tidy even without moving the whole machine.

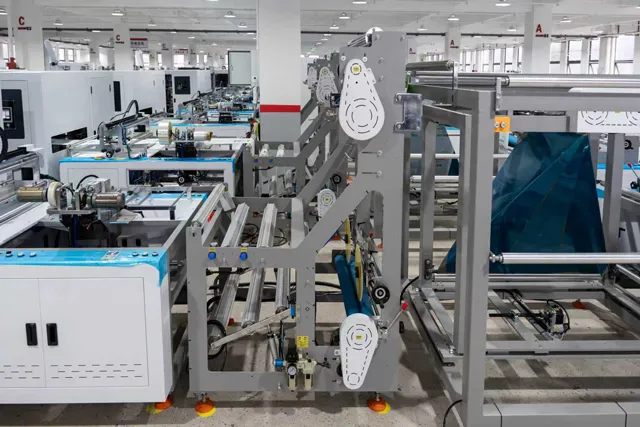

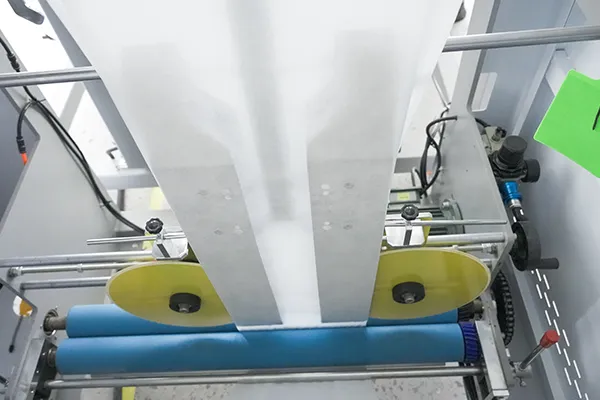

Part 3 Bag bottom / side Gusset part
Feeding and computer length fixed by stepping motor, photocell eye tracking, bottom and side gusset making, and the side sealing of T-shirt bag by ultrasonic.

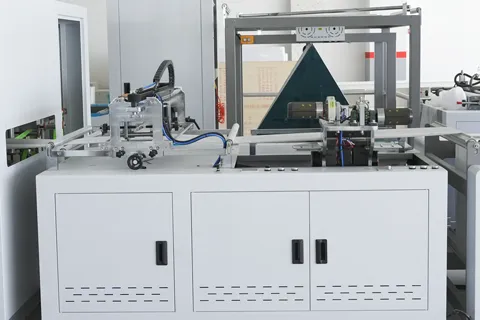

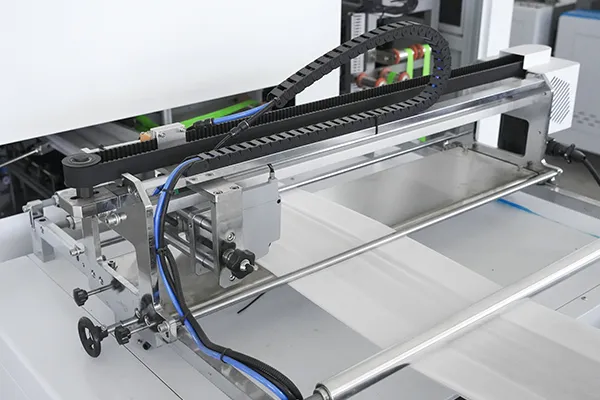

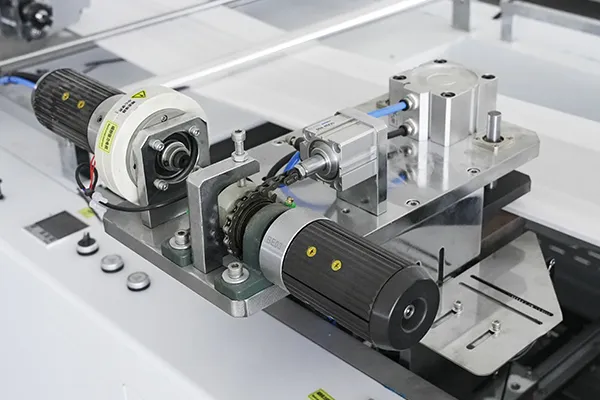

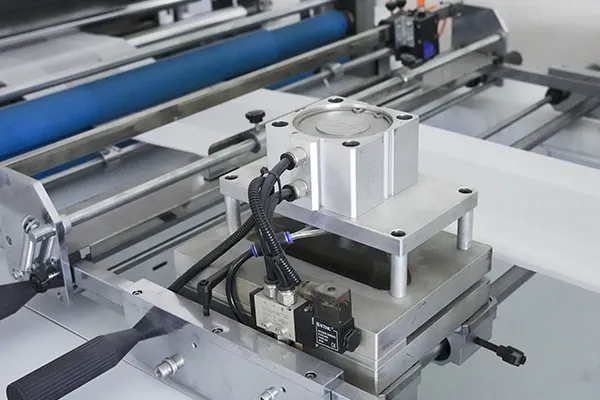

Part 4 Triangle Indentation box bag forming part
The function of box bag three-dimensional, triangle sealing by ultrasonic, PET film unwinding and rewinding and D-cut punching unit. gusset size of box bag from 80 MM to 160 MM,custom made gusset size up to 300 MM.

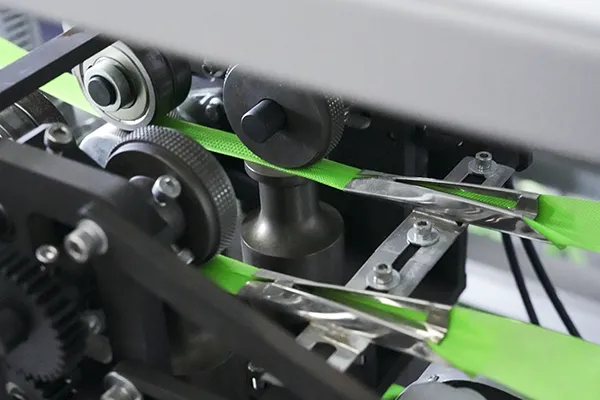

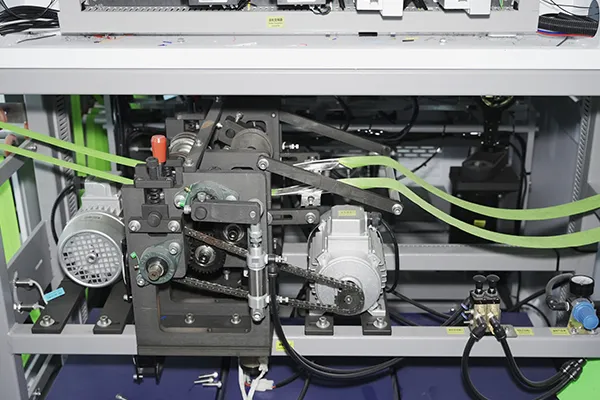

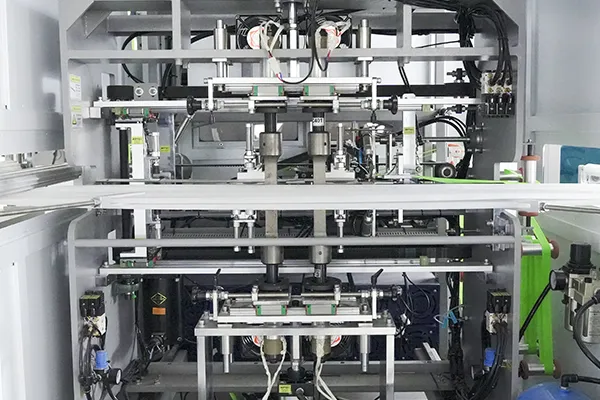

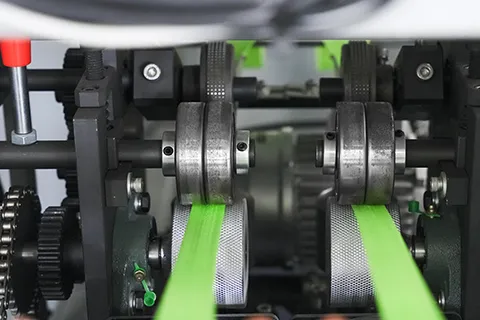

Part 5 Online handle sealing
Automatic integration ultrasonic handle sealing device, adopts PLC motion control and touch screen man-machine interface, easy operation, auto stop when no material. Handle feeding and length fix by stepping motor, high stability, handle attaching speed up to 75 pcs/min.

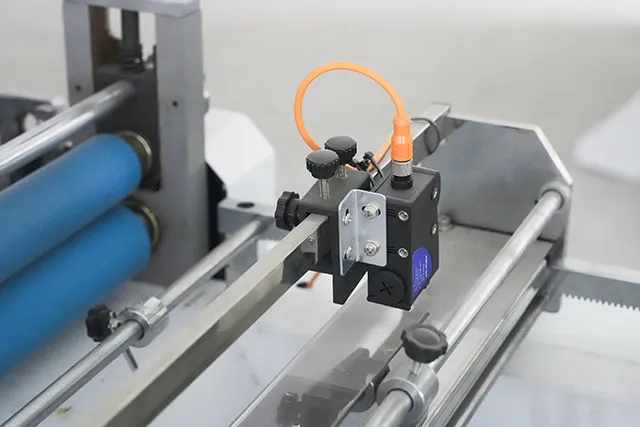

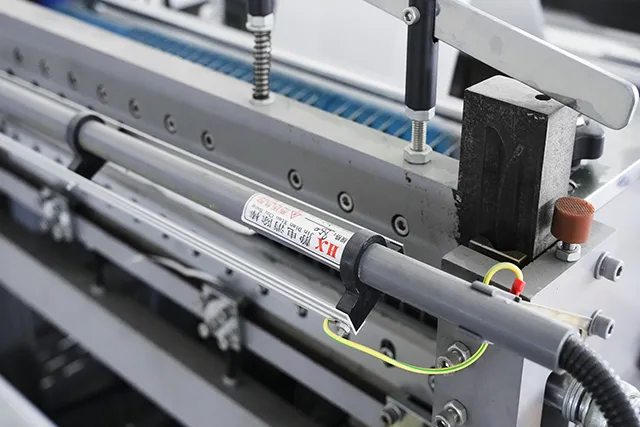

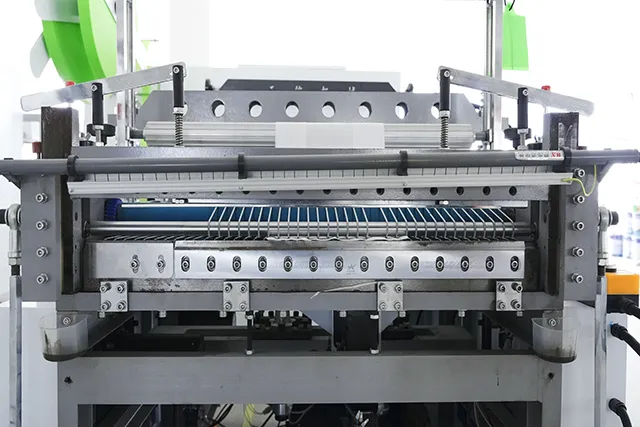

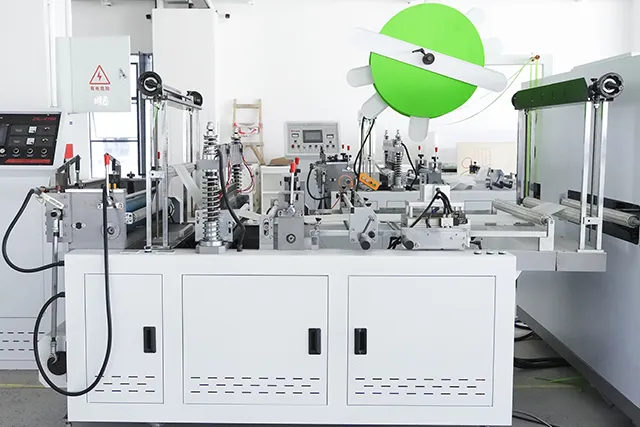

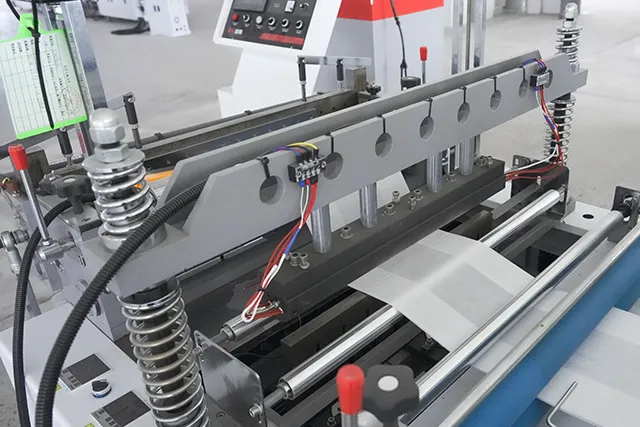

Part 6 Bag making part
The function of Bag side sealing , cutting, collection. adjustable photoelectric sensor for printing color mark tracking, triangle removing by punching unit and Durable cold cutter. Adopts two Taiwan brand ultrasonic welding system(horn 300 MM) , different specs of ultrasonic can be used to meet different non woven fabric GSM.

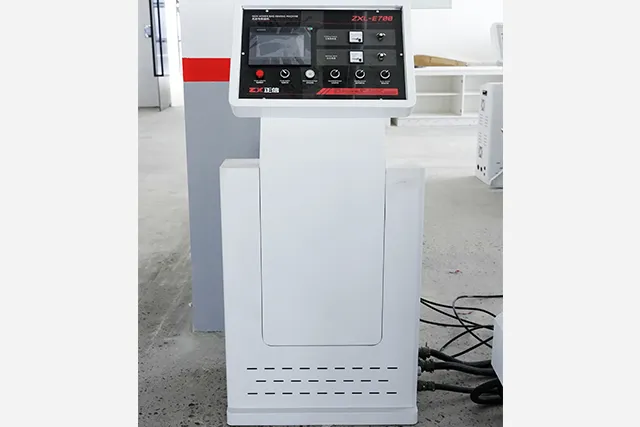

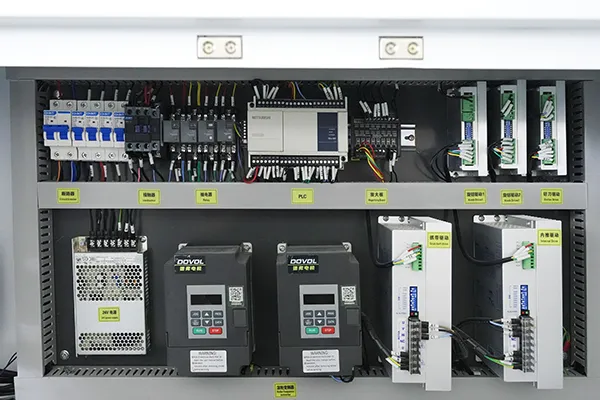

Part 7 Operation Computer
Integrate all the electricity elements, adopts split-type design and PLC motion control as well as touch screen man-machine interface, easy operation and maintaining.
BAG TYPE— ZXL-E700 machine can make :
 | Non woven box handle bag(Making online) |
| Bag Height: 200-580mm Bag Width: 100-800mm Bag Folding: 30-80mm Bag Bottom Gusset: 20-80mm Handle length : 380-600mm Handle Width: 2-3cm | |

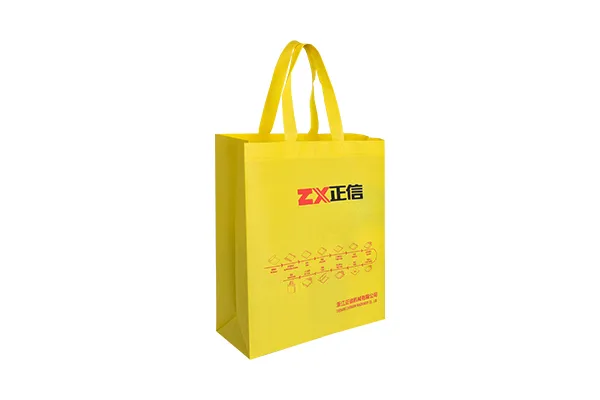

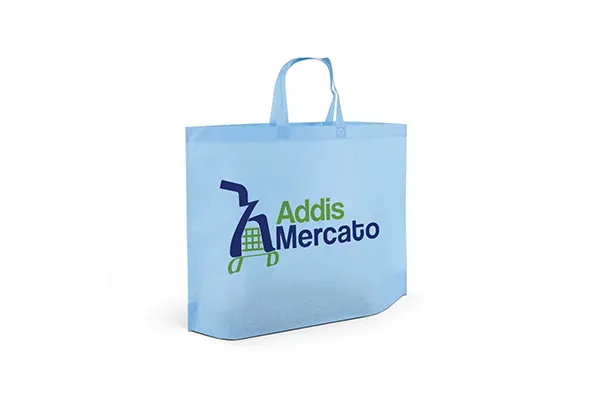

 | Non woven handle bag ( Making online) |
| Handle bag with or without bottom Bag Height: 250-580mm Bag Width: 100-800mm Bag Folding: 30-80mm Bag Bottom Gusset: 20-80mm Handle length : 380-600mm Handle Width: 2-3cm | |

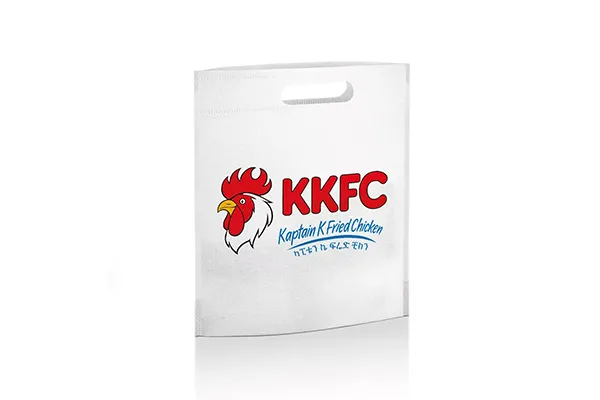

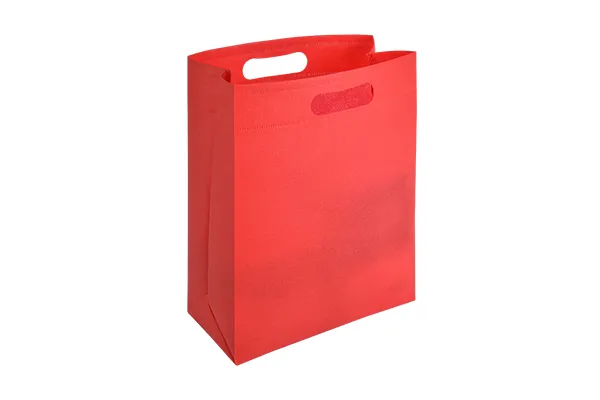

 | Non woven D-cut bag ( Making online) |
| D-cut bag with or without bottom Bag Height: 250-580mm Bag Width: 100-800mm Bag Folding: 30-80mm Bag Bottom Guesst: 20-80mm | |
 | Non woven shoes bag / Drawstring bag (Making online) |
| Bag Height: 250-580mm Bag Width: 100-800mm | |
 | Non woven T-shirt bag / Vest bag/ W-cut bag / U-cut bag( need make separately)Need extra punching machine |
| Bag Height: 200-700mm Bag Width: 200-400mm Bag Guesst: 30-80mm |
Get Quote Now!
Welcome to discuss your purchasing requirements with our customer service.
Provide Whole Solution For Packing & Printing Industry
- Touch color screen control, interface image neat, simple operation.
- Z-shaped no-waste design saves material costs.
- The ironing line is clear and firm.
Zhengxin Precision Import & Export Solutions
Zhejiang zhengxin machinery co.,Ltd is the most professional manufacturer of Non woven bag making machine. Our main product is non woven bag making machine , flexo printing machine, Screen printing machine,slitting machine , soft loop handle sealing machine, mask machine, ear loop welding machine and other related mechanical equipment. We have excellent team who will provide the detailed introduction of machines and cost -effective solution according to customers requirements. We have a huge after-sales service team, our technicians can arrive at your factory to help you to solve all the machine operation problem. We not only provide your good quality machines, but also the marketing experience and plan for your business. Welcome to ZX Machinery and start our win-win cooperation.
Packing & Shipping
- Weight: 9000KGS
- Container : one 40ft container
- Packing: In containers, and packed with plastic films (Wooden case / Wooden pallet also available)
- Shipping Mark: N/M ( depends on customer demands)
- Our packaging is very strict. Please rest assured.
