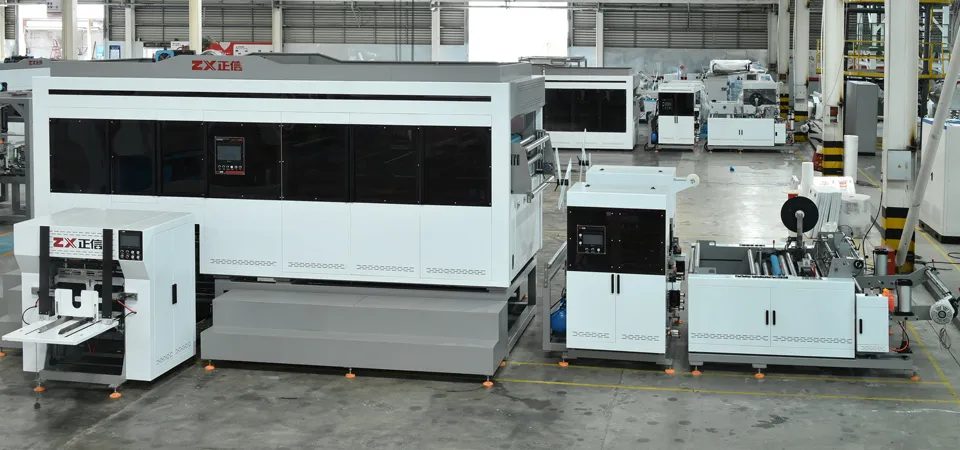

ZX-LT500V Vertical three-dimensional bag non-woven bag making machine

It is a fully automated system that handles feeding, molding, and handle attachment autonomously. This significantly reduces the number of operators required, cutting labor costs and minimizing human error for consistent output.

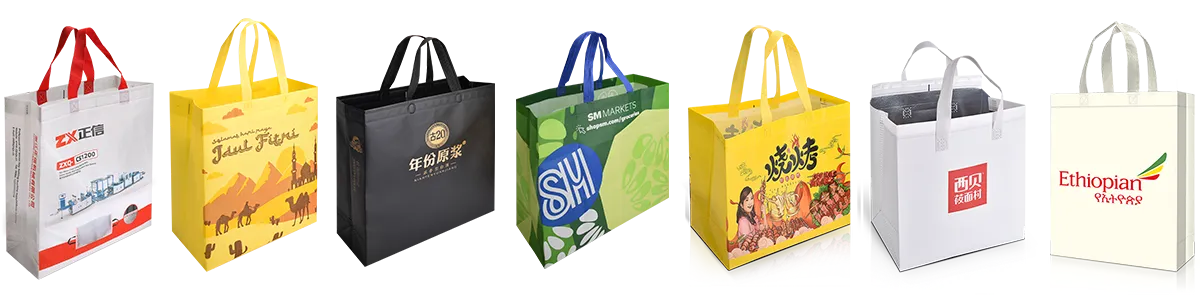

It specializes in high-quality flat-bottom or box-bottom bags with integrated side gussets (80-220mm). It produces bags with a height of 180-450mm, a width of 180-550mm, and adds handles ranging from 350-600mm in length.

The machine operates at a high speed of 60-80 finished bags per minute. This high output ensures you can meet large order volumes efficiently, providing a fast return on your investment.

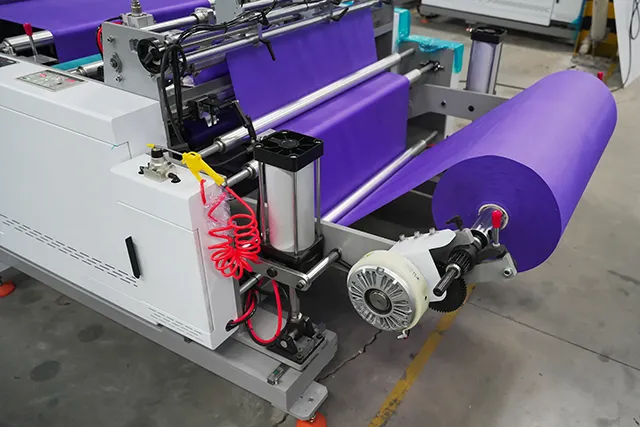

It works with main non-woven fabrics from 70-150g/m² and handle materials from 50-100g/m². This covers a wide range of common weights, allowing for the production of both standard and heavier-duty, more durable bags.

The machine requires a 380V/50Hz power supply with a total power of 50kW. It also needs a compressed air supply of 1.0 MPa and a flow of 1.2 m³/min. Please ensure your facility can meet these utility requirements.

Advanced PLC controls and precision engineering guarantee accurate cutting, sealing, and forming on every cycle. This results in uniform, professional-looking 3D bags with strong seals and perfect dimensions, batch after batch.

Yes. With a robust weight of 9000kg and a heavy-duty construction, it is designed for 24/7 industrial operation. This ensures remarkable stability, reliability, and minimal downtime in demanding production environments.

Absolutely. We provide comprehensive on-site installation, commissioning, and detailed training for your operators and maintenance team. This ensures you can run the machine at peak efficiency and perform basic troubleshooting.
