ZX-B450 Roll-Fed Square Bottom Paper Bag Making Machine

1. MACHINE PARAMETER

	Dimension	Parameter
1	Model	ZX-B450
2	Bag length	280-530 mm
3	Bag width	220-450 mm
4	Bottom width	80-200 mm
5	Roll width	630-1370 mm
6	Roll diameter	Φ1300mm
7	Roll core diameter	Φ76mm
8	Machine speed	30-160 pcs/min
9	Bag making speed	30-150 pcs/min
10	Paper Thickness	80-160 gsm
11	Power supply	3 phase 380V
12	Total power	12 kW
13	Overal dimension	10020x3150x2200 mm
14	Machine weight	10000 Kgs

2. BAG SAMPLES

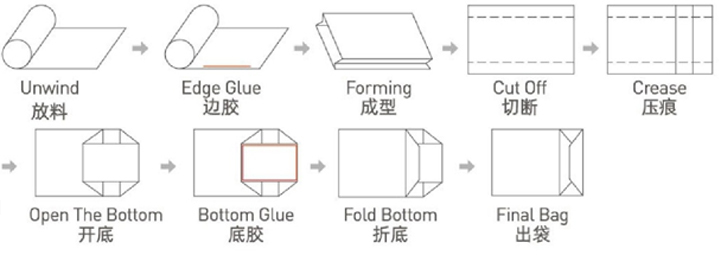

3.MAKING PROCESS

Fundamental Stages and Sequence of the Box Bag Making Process

4. MACHINE CONFIGURATION

Zhengxin Machinery is committed to ensuring stable coordination among all components of the complete machine, delivering reliable and long-lasting performance. The components and brands we select are the optimal combinations designed by our professional R&D team after extensive testing and verification. The configuration document details the quantity and brand of key components used in the machine.

Control system

Item	Specification	Brand
PLC	1 pc	Mitsubishi
Touch Screen	1 pc	China
Traction servo motor	1 pc	Mitsubishi
Servo motor driver	1 pc	Mitsubishi
Main servo motor & driver	1 pc	Mitsubishi
Positioning Photoelectric Sensor	1 pc	Sick
Low-voltage Apparatus‌	1 pc	Eaton
Glue Position Detection	1 pc	Omron

Deviation correction & tension control

Item	Specification	Brand
Deviation correction controller	1 pc	Bianu
Deviation correction servo motor	1 pc	Bianu
Ultrasonic sensor	1 pc	Bianu
Magnetic Particle Brake	1 pc	Wenzheng

Transmission

Item	Specification	Brand
Synchronous belt	1 pc	Gates
Synchronous wheel	1 pc	China
Bearing	1 pc	NSK
Guide roller	1 pc	China
Gear	1 pc	China
Roll pneumatic shaft	1 pc	China
Product Conveyor‌	1 pc	China

Glue position

Item	Specification	Brand
Bottom glue (bottom-sealing white latex)	1 pc	China
Spraying gun for center sealing (dense adjust Glue gun )	1 pc	China
High-pressure glue barrel for white latex	1 pc	TW

As the machine undergoes iteration and upgrades, the components may be replaced with equivalent or higher-quality brands of the same level, without prior notice, while maintaining or improving overall performance. The seller reserves the right to make such substitutions.

5.


   MACHINEFEATURES

This machine is designed to produce paper bags from rolls of natural-colored or printed paper, such as kraft paper and food-grade paper, completing the entire bag-making process in a single operation. It features automatic center-line gluing, printing, and bag-forming tracking. The process includes unwinding the roll, cutting to fixed length, bottom creasing, bottom folding, bottom gluing, bag bottom forming, and final product organization—all completed seamlessly in one cycle.

This machine offers easier operation, higher efficiency, and greater stability, making it an ideal eco-friendly paper bag manufacturing solution for producing various types of paper bags, including snack food bags, bread bags, dried fruit bags, and more.

The features of machinne as follows:

1. Specially designed structure significantly expands the machine’s bag-making range, enabling the production of large-sized handle paper bags to meet diverse customer requirements.

2. The electronic control system utilizes imported original components from Japan, ensuring stable and high-speed equipment operation.

3. Material loading is handled by an automatic hydraulic lifting system, while the unwinding unit is equipped with an automatic tension control system.

4. The unwinding section adopts advanced web guiding (edge correction) technology, effectively reducing material alignment time.

5. Equipped with a servo motor control system to achieve precise and efficient operation. 6. Delivers higher production efficiency while ensuring long-term stable performance.
