Function:
The machine is specially designed for supporting the production of eco-friendly paper bags, it can produce flat handle efficiently and past it to the bags by manual. This machine uses 4 rolls of narrow-width kraft paper as raw material, gradually formed by a flat rope mold transmission system to complete the production of flat ropes and flat handles to form a flat handle.
Tel: +86 15858889595
Whatsapp:8615858889595
Wechat: zxcorp
Email: inquiry@zxcorp.com
The machine is specially designed for supporting the production of eco-friendly paper bags, it can produce flat handle efficiently and past it to the bags by manual. This machine uses 4 rolls of narrow-width kraft paper as raw material, gradually formed by a flat rope mold transmission system to complete the production of flat ropes and flat handles to form a flat handle.

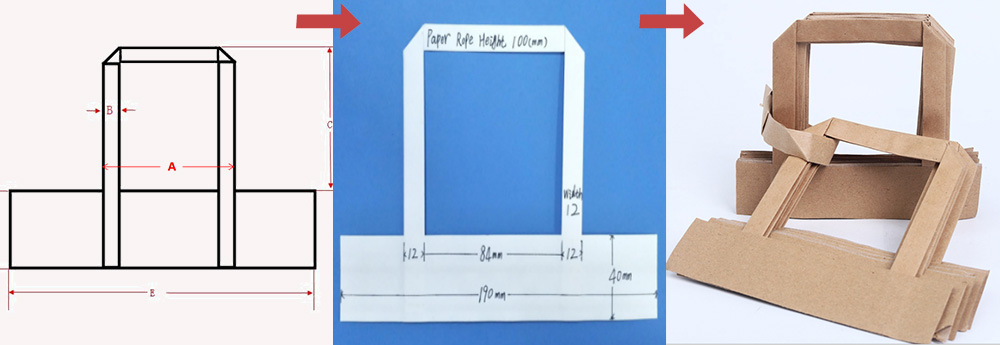

| Handle Spacing(A) | 108mm(fixed) |
| Paper Rope Width(B) | 12mm/15mm(optional) |
| Paper Rope Height(C) | 10cm |
| Paper Width(D) | 40mm |
| Paper Length(E) | 152/190mm(optional) |
| Paper Rope Length | 352mm |
| Paper Gram Weight | 100-120g/㎡ |
| Production Speed | 6000pairs/h |
| Power Requirements | 380V |
| Total Power | 10KW |
| Total weight | Appr.4000kg |
| Overall Dimension | L5000*W1500*H1500mm |
| Glue Type | Hot-melt glue |
| Inverter | Shihlin |
| Hot melt machine brand | Xinbaishun(China) |
| Electric motor | Dongte (China) |
Welcome to discuss your purchasing requirements with our customer service.
A: Within one week after machine arrival your factory.
A: We will finish installation and training within 15 days.
A: You should charge for the cost of our engineer’s visa , air tickets, hotel, food ,and also their salary 80USD one day per person.
A: All our machine have one year guarantee, starting from finished installation.
A: We also can do service for you, but you need pay salary for my technician 80USD/day.
A: We would express the free replacement parts during the warranty date.
A: Our engineer understand a little English. All our engineer have more than five years machine installation experience. In addition, they can use body language to communicate with customer.
A: Of course, we will check and inform you as soon as possible.
A: Generally speaking, there will be no problem after finish installing. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according your description.
A: Except Two for bag making machine, flexo printing, slitting, ultrasonic sewing, hydraulic punching machine only need one person for each.
Welcome to discuss your purchasing requirements with our customer service.
